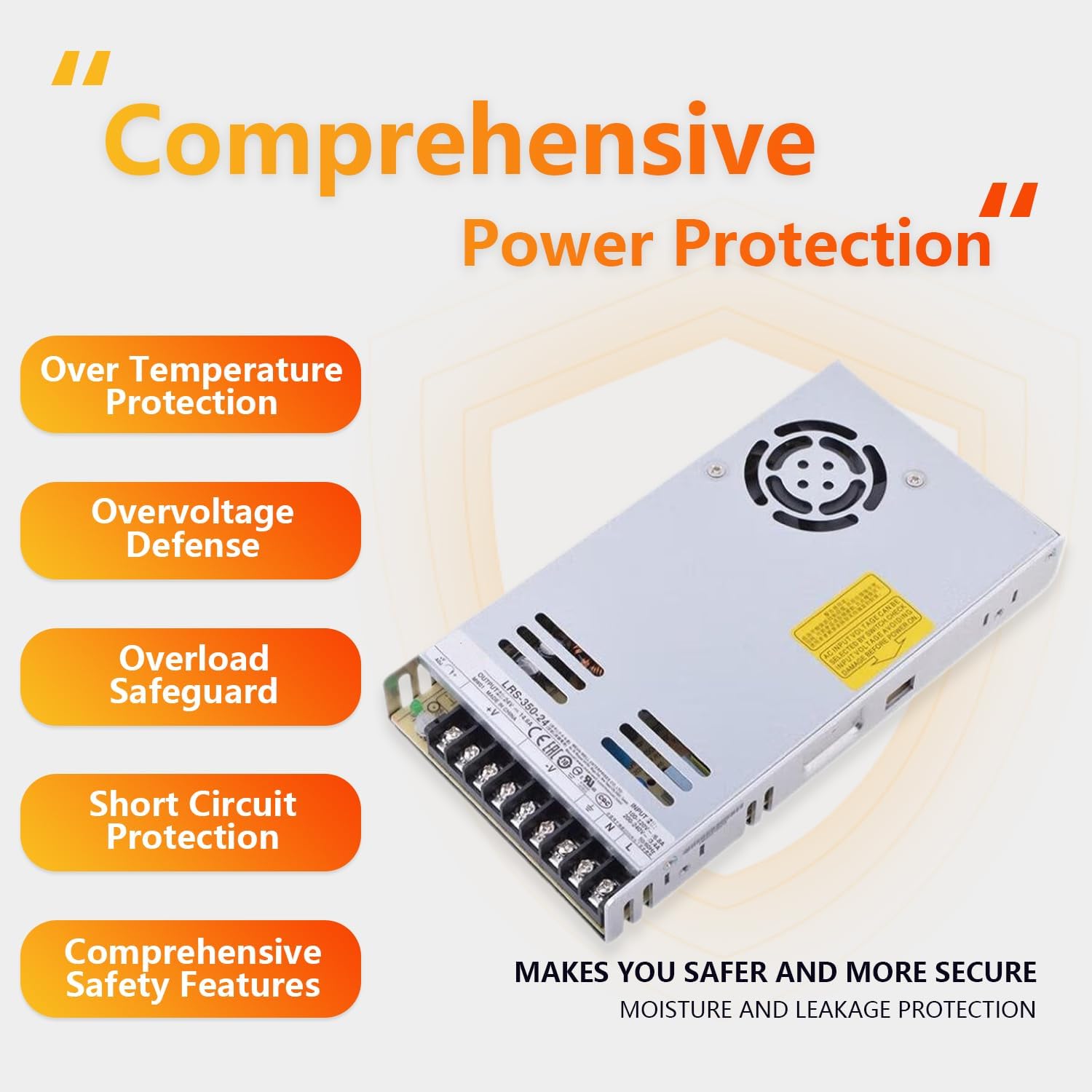

LRS-350-24 24V 14.6A 350W Switching Power Supply for Industrial Equipment & Communication Systems

The LRS-350-24 switching power supply provides 24V DC output with 14.6A current capacity (350.4W max) at 88% high efficiency. Designed for industrial applications, it accepts universal 85-264VAC input (47-63Hz) with active power factor correction (PF>0.95). The unit features multiple protections: OVP (135-160% protection range), OCP (105-140% current limit), SCP auto-recovery, and thermal shutdown at 90°C±10°C. Its compact metal enclosure (199*99*38mm) supports natural air cooling without fans, operating in -30°C to +70°C environments with 20-90% non-condensing humidity. Certified to UL62368-1/EN61347-1 standards with CE/FCC/BSMI/RoHS compliance. Includes 1500VAC I/P-O/P isolation resistance and 3000m altitude operation capability. Ideal for powering PLC systems, LED displays, CCTV networks, and automated machinery. Provides 5,000m minimum insulation resistance and 3.5mA max leakage current. Mounting dimensions: 191*91mm with terminal block connections. Backed by 3-year warranty and international safety certifications.

• High-Efficiency 24V DC Output: Delivers stable 24V voltage with 14.6A current capacity (350W total power) and 88% conversion efficiency, ensuring energy-saving operation for industrial automation systems and LED lighting installations.
• Universal Input Voltage Range: Supports 85-264VAC wide input voltage (47-63Hz) with active PFC function, compatible with global power standards for reliable performance in commercial/industrial environments.
• Comprehensive Protection System: Built-in over-voltage/over-current/short-circuit protections with automatic recovery, plus over-temperature protection (operates at -30°C to +70°C) for enhanced device safety.
• Compact & Durable Design: 199*99*38mm metal housing with IP20 protection rating, featuring convection cooling technology and 4,000m altitude tolerance for space-efficient installation in harsh conditions.
• Certified Multi-Application Solution: UL/CE/TUV/FCC certified power supply ideal for CNC machines, telecom equipment, security systems, and 24V battery charging applications with 5-year lifespan.
